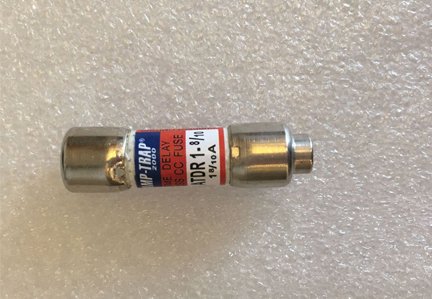

New and Original 1 - 8 / 10A 600V ATDR1 - 8 / 10 Class CC Fuse

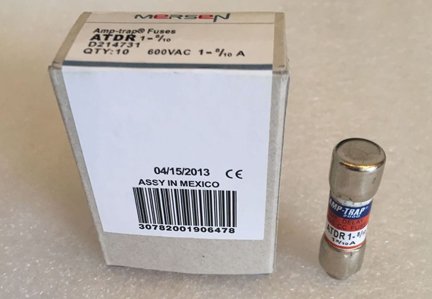

Specification 10pcs / box

0.1kg / box

30pcs / USD2.49

Length: 5.5cm Width: 4cm Height: 2cm
Price

$0.00

Price adjustment, please contact customer service.
Quantity
final price = products price + shipping cost, please contact us to get the shipping cost
Payment Method
Download

Buy Now Add to Cart

Product details

the BEST PROTECTION FOR TODAy¡¯S SMALL MOTORS.

Amp-trap 2000? ATDR small-dimension fuses can provide IEC Type 2 ¡°no damage¡± protection to your facility¡¯s increasingly sensitive branch circuit components and small motors ¨C minimizing the risk of fault-related damage. ATDR Class CC fuses deliver the best time delay characteristics in their class with excellent cycling ability for small motor loads.

Features/Benefits

Time delay for motor starting inrush currents without nuisance opening

Highly current limiting for low peak let-thru current Improved cycling ability for frequent motor starts/stops without nuisance fuse opening

Rejection-style design prevents replacement errors (when used with recommended fuse blocks)

High-visibility orange label ensures instant recognition, simplifies replacement Metal-embossed date and catalog number for traceability and lasting identification

Fiberglass body provides dimensional stability in harsh industrial settings

High-grade silica filler ensures fast arc quenching and optimum current limitation

HIGHLIGHTS: Time Delay Best Choice for Small Motor Protection Highly CurrentLimiting AC & DC Rated

APPLICATIONS: Small Motors Contactors Lighting, Heating & General Loads Branch Circuit Protector

AC: 1/4 to 30A 600VAC, 200kA I.R.

DC: 1/4 to 30A 300VDC, 100kA I.R.
