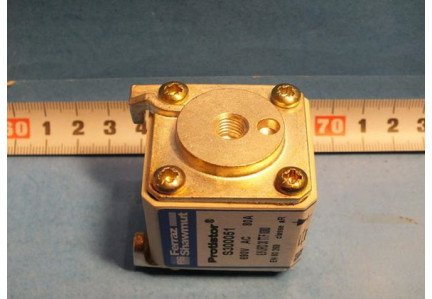

Electrical Fuse 80A 690V S300051 PC30UD69V80TF Ferraz Fuse
-
Specification 3pcs / box0.8kg / box0.25kg / pcsLength: 17.5cm Width: 7.5cm Height: 5cm
-
Price
$0.00
Price adjustment, please contact customer service.
-
Quantity
- final price = products price + shipping cost, please contact us to get the shipping cost
-
Payment Method
-
Download
450 TO 700VAC / 63 TO 2800A
Exceptionally low I2T, Watt losses.
Non-magnetic construction,
Highly reliable low voltage
Trip-indicator system, conformity to UL,
IEC, DIN and VDE standards.
Increased technical performance
? Highter ratings
? Reduction in volume and weight
This fuse preselection table indicates, for each size:
- rated current (or rating) In
- pre-arcing I2t (I2tp) at 1 ms
- total operating I2t (I2tt) at 660 V, f=50Hz cos ?=0.15, and for a total operating time from 8 to 10 ms
- dissipated power Pn at the rated current In, and at 0.8 In, in steady state
- breaking capacity at various voltages, checked by tests
made in accordance with IEC and American standards.
