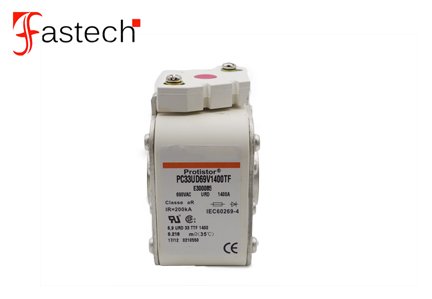

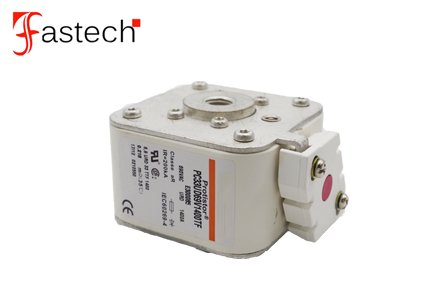

Electronic components 690A 1400V PC33UD69V1400TF E300085 Ferraz Shawmut Fuse

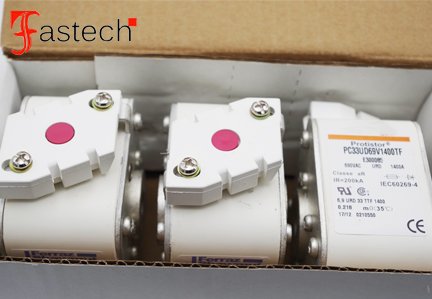

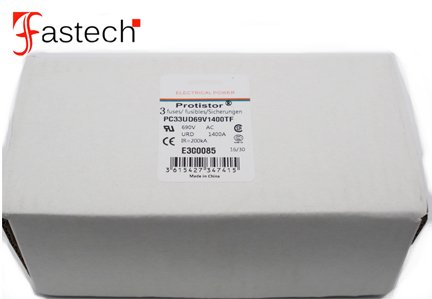

Specification 3pcs / box

0.8kg / pcs

2.45kg / box

Length: 19.5cm Width: 10cm Height: 8.5cm
Price

$0.00

Price adjustment, please contact customer service.
Quantity
final price = products price + shipping cost, please contact us to get the shipping cost
Payment Method
Download

Buy Now Add to Cart

Product details

SQUARE BODY HIGH-SPEED FUSE-LINKS AC PROTECTION

The 690/700V Protistor? fuse-links provide maximum flexibility in equipment design and ultimate protection for today¡¯s power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor? have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I?t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

FEATURES & BENEFITS

? Multiple body sizes and terminals or blades combination

? aR Class according to IEC 60269-4 and VDE 636-23

? Very low I?t for improved semiconductor protection

? Ultra fast acting

? Current limiting

? Superior cycling capability

APPLICATIONS

? Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.

STANDARDS

? IEC 60269-4 Compliance ? UL/CSA Recognized E76491 ? CCC 1359.4
