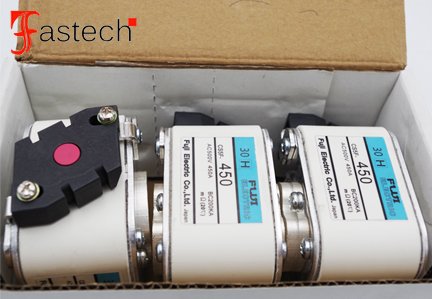

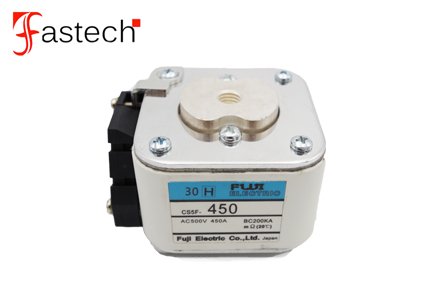

New Orginal 450A 500V Square Body Fuse CS5F-450 Fuse Link

Specification 3pcs / box

0.8kg / pcs

2.45kg / box

Length: 20cm Width: 10cm Height: 8cm
Price

$0.00

Price adjustment, please contact customer service.
Quantity
final price = products price + shipping cost, please contact us to get the shipping cost
Payment Method
Download

Buy Now Add to Cart

Product details

Description The FUJI BLC, CR and CS types are extremely reliable fuses which have been specially developed to provide protection for silicon diodes and thyristors and are suitable for inverters using semiconductors or transformersrectifiers. FUJI Super Rapid Fuses are designed with a very small total I2t value which gives them a high speed interrupting action in the face of abnormal currents. In addition the arc voltage generated at the time of interruption has a low value so that faults will not influence related electric machinery and equipment. These fuses can carry out the protection of many types of circuits rating from the semiconductor overcurrents to destructive shortcircuiting faults-i.e. when the semiconductors short or circuits fail the sound elements will be quickly isolated from the fault circuits.

Features

? The total clearing I2t is small and the semiconductor circuit is completely protected.

? Since the peak arc voltage at the time of interruption is low damage to other equipment does not occur.

? High interrupting capacity of 200kA at 1000V AC

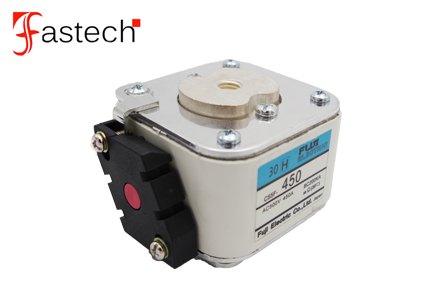

? The CS type is provided with a blown fuse indicator. An alarm contact block (1NO or 1NC) can also be attached.

UL recognized: CR2L/UL,CR2LS/UL, CR6L/UL (File No. E92312)

CSA certificated: CR2LS/UL (File No. LO4000-4090)

T?V: CR2LS/UL (10-100A), CR2L/UL (150-350A) (Rep. No. E9450643E02) CR6L/UL (50-300A) (Rep. No. E9560543E02)
