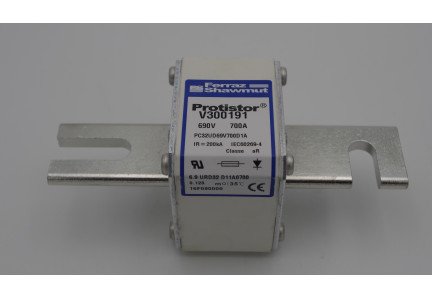

Ferraz Semiconductor Fuses 700A 690V PC32UD69V700D1A Ferraz Protistor
-
Specification 2pcs / box1.05kg / box0.5kg / pcs4 Pcs / USD62.00Length: 15.5cm Width: 12cm Height: 8cm
-
Price
$0.00
Price adjustment, please contact customer service.
-
Quantity
- final price = products price + shipping cost, please contact us to get the shipping cost
-
Payment Method
-
Download
SQUARE BODY HIGH-SPEED FUSE-LINKS AC PROTECTION
The 690/700V Protistor? fuse-links provide maximum flexibility in equipment design and ultimate protection for today¡¯s power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles. The Protistor? have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I?t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic. Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
FEATURES & BENEFITS
? Multiple body sizes and terminals or blades combination
? aR Class according to IEC 60269-4 and VDE 636-23
? Very low I?t for improved semiconductor protection
? Ultra fast acting
? Current limiting
? Superior cycling capability
APPLICATIONS
? Protection of inverters, motor drives, UPS systems and similar 690V or less equipments.
STANDARDS
? IEC 60269-4 Compliance ? UL/CSA Recognized E76491 ? CCC GB 13539.4
