High Speed Square Body Fuse Link 3NE1817-0 Fuses
  • High Speed Square Body Fuse Link 3NE1817-0 Fuses
  • High Speed Square Body Fuse Link 3NE1817-0 Fuses
  • High Speed Square Body Fuse Link 3NE1817-0 Fuses
  • High Speed Square Body Fuse Link 3NE1817-0 Fuses
  • High Speed Square Body Fuse Link 3NE1817-0 Fuses

High Speed Square Body Fuse Link 3NE1817-0 Fuses

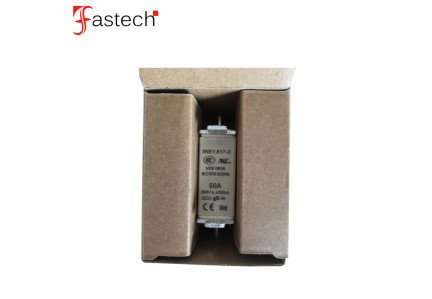

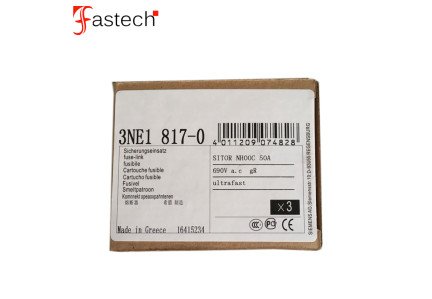

  • Specification 3pcs / box
    0.4kg / box
    0.1kg / pcs
    Length: 8cm Width: 7cm Height: 6cm
  • Price

    $0.00

    Price adjustment, please contact customer service.

  • Quantity

  • final price = products price + shipping cost, please contact us to get the shipping cost
  • Payment Method

  • Download
Product details

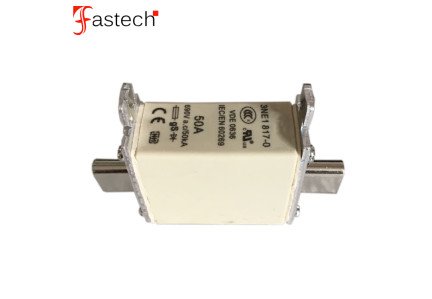

SITOR FUSE-LINK UTILIZ. CATEGORY GS,

Technical data:

Current / for AC / rated value      A     50

Operating class of the fuse link      gS

Size of the fallback-system / acc. to DIN EN 60269-1     NH000

Supply voltage

? for AC / rated value     V     690

? for DC            V     440

Switching capacity current

? in accordance with IEC 60947-2 / rated value     kA     71

Design of an identification indicator others

Ambient temperature      ¡ãC     -20 ¡­ +50

Varying load factor (WL)     1
