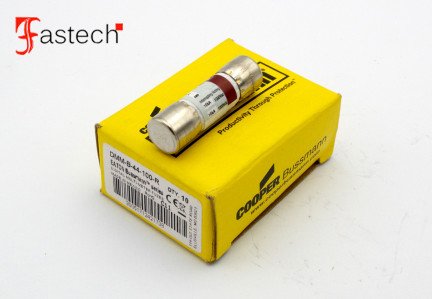

Original New 440A 1000V Fast Acting Fuse DMM-B-44/100-R Bussmann Fuse
-
Specification 10pcs / box0.1kg / boxLength: 5.5cm Width: 4cm Height: 2cm
-
Price
$0.00
Price adjustment, please contact customer service.
-
Quantity
- final price = products price + shipping cost, please contact us to get the shipping cost
-
Payment Method
-
Download
Catalog symbol / color code:
? DMM-B
? Maroon (1000Vac/dc max voltage)
Description:
Fast-acting supplemental fuse for multi-meters only.
Intended to carry 100% of rated current indefinitely.
Not intended for branch circuit protection.
Ratings
* DMM-B-44/100 ¨C 10kA, 1000Vac, unity power factor and 10kA, 1000Vdc with time constant of 2.2ms. Minimum interrupt 400% of rated current at rated voltage.
DMM-B-11A ¨C 20kA, 1000Vac, power factor ¡Ü0.2; 20kA, 1000Vdc, time constant ¡Ý10ms.
Agency information
? CE
? UL Recognized 1000Vdc, File E19180)
? RoHS compliant
Temperature specifications
? DMM-B-44/100 - Maximum temperature 28¡ãC in 22¡ãC ambient temperature when carrying 100% of rated current.
? DMM-B-11A - Maximum temperature 69¡ãC in a 22¡ãC ambient temperature when carrying 100% of rated current.
Features:
? Color coded for 1000Vac/dc maximum voltage rating
? Melamine tube construction
? Nickel-plated endcaps
Typical applications
? Multi-meters
